Bypass Stack Manufacturer in China | Self-Supporting HRSG Bypass Stacks & Gas Turbine Bypass Systems
Hangzhou Hangguo General Equipment Co., Ltd. is a bypass stack manufacturer and factory in China and a subsidiary of XIZI Clean Energy (stock code 002534). Since 2000 we have delivered 126 sets of gas turbine bypass systems, including 48 sets for 9F-class and larger turbines, for GE, Siemens, MHI and Ansaldo units from 6B up to 9HA and M701J. We build the complete stack — casing, internal insulation, 409 stainless liner, platforms, lighting and CEMS ports — in our own 86,600 m² plant, not through subcontractors.

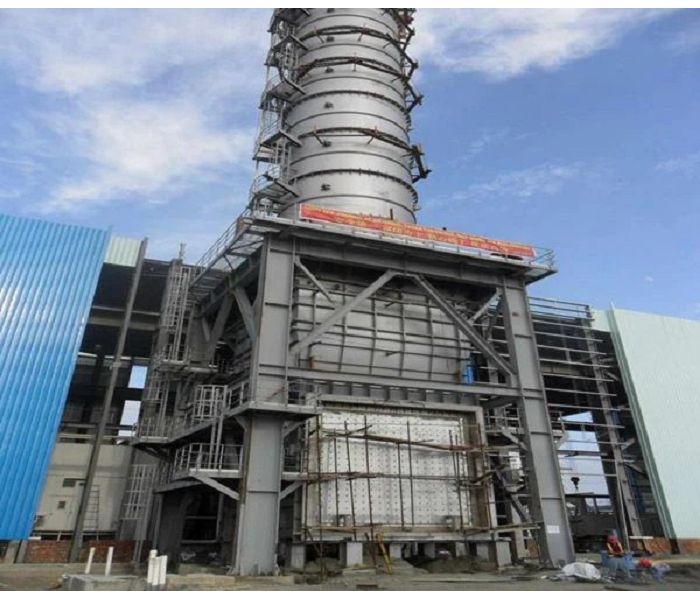

A bypass stack is the chimney that vents gas turbine exhaust straight to atmosphere when the HRSG is offline. Together with the three-way diverter it lets a plant switch between combined cycle and simple cycle, keep generating while the boiler is being repaired, and start up without thermally shocking the HRSG. We supply the stack and the diverter damper as one matched package — single-source responsibility for sealing, alignment and start-up.
Self-supporting bypass stack sections staged for inspection before shipment.
-
HRSG Bypass Stack SystemBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
High Quality Bypass Dampers 4WD Adjustable DampersBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
Exhaust Gas Bypass SystemBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
Main Stack & Bypass Stack SilencersBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
HRSG BYPASS STACK DAMPERSBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
Self-support Structure Bypass Steel StackBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
Self-support Structure Bypass StacksBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
Self-support Structure HRSG Bypass StacksBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
HRSG Bypass StacksBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
Heat-Recovery Steam Generators And Bypass StacksBypass stack is self-support structure, the gas path is ID 8000mm, and it design as rainproof. The casing of stack is roll up by steel stack.read more
-
Bypass Stack with Lighting SystemThe casing of stack is equipped with a lighting system, which is convenient for maintenance personnel to walk and overhaul at night. The illumination of each floor platform is calculated and designedread more
-
Insulation Bypass ChimneyThe internal insulation system consists of Insulation, Liner Panels, Retaining/Supporting Studs and hardware (see Figure 8).read more
What You Are Buying: Six Layers Of A Hangguo Bypass Stack
Most suppliers quote a chimney. A bypass stack that survives 20 years of cycling is a layered system — each layer has a job, and every layer is detailed in house.
Internal insulation build-up: insulation, liner panels, studs and hardware.
Platform lighting calculated per level for night inspection.
Insulation And Liner Specification
Ceramic fibre thickness, alloy grade and lap direction are selected against your actual gas temperature profile and cycling pattern, not copied from a generic drawing.
Insulation and Liner Specification
| Insulation thickness | Typically 180 mm to 230 mm, laid in 50 mm layers; set to customer requirement |
| Insulation material | Ceramic fibre standard; alternative materials to project specification |
| Liner panel material | 409 stainless steel |
| Liner thickness | 2 mm on the stack liner, 3 mm on other liners |
| Lap direction | Overlap-with-the-flow from inlet transition through the diverter into the duct extension |
| Fixing | Panels seated on liner support studs, secured with stainless steel hardware, nuts double tack-welded at 180° |
| External surface temperature | Internal insulation keeps the casing surface at no more than 60 °C |
| Casing joints | Sections welded together; liner and insulation at the joint installed on site |
Bypass Stack Products: 12 Configurations We Build
From the complete HRSG bypass system down to insulation packages and silencer interfaces. Every entry is engineered to order — click through for the configuration that matches your plant, or send duct and height data for a quotation.
| Product | Positioning | Key engineering points |
|---|---|---|
| HRSG Bypass Stack System | Complete system | Three-way valve discharges GT exhaust either to atmosphere or into the HRSG; high capacity with strong sealing geometry, sealing pressure and closing time. |
| Self-support Structure Bypass Stacks | Self-supporting shell | Free-standing casing needs no guy wires or external tower; zero leakage at the damper under maximum airflow. |
| Self-support Structure Bypass Steel Stack | Steel stack version | Roll-formed steel casing, rainproof design, gas path ID 8,000 mm on delivered units. |
| Self-support Structure HRSG Bypass Stacks | HRSG duty | Dampers installed between gas turbine and HRSG, designed for the extreme conditions of that position. |
| HRSG Bypass Stacks | Combined/simple cycle | Supports combined cycle by day and simple cycle at night when demand is lowest, cutting operating cost over plant life. |
| HRSG Bypass Stack Dampers | Damper package | Thermally compensated vanes and supports, robust toggle drive, baffle supports and sound-dampening baffles. |
| Exhaust Gas Bypass System | Full gas path | Diverts flue gas from the HRSG to a stack with muffler assembly so the HRSG can be serviced behind a closed diverter. |
| Heat-Recovery Steam Generators and Bypass Stacks | HRSG interface | Bypass stack and HRSG treated as one maintenance and operating system, with after-sales support. |
| Main Stack & Bypass Stack Silencers | Noise control | Silencer assemblies for main and bypass stacks; square-to-round gradient transition welded on site. |
| Bypass Stack with Lighting System | Access & lighting | Casing fitted with a lighting system; illumination of every platform level calculated for night overhaul work. |
| Insulation Bypass Chimney | Insulation package | Insulation, liner panels, retaining studs and hardware supplied as a defined internal system. |
| High Quality Bypass Dampers 4WD Adjustable | Adjustable damper | Hydraulic actuation with torque released as the seal compresses; rotation angle detected by two sets of limit switches. |



Bypass Stack Technical Parameters
| Structure | Self-supporting; no guy wires, no external support tower |
| Gas path diameter | ID 8,000 mm on delivered projects |
| Casing | Roll-formed steel plate; sections welded together, rainproof design |
| Internal insulation | Ceramic fibre, 180–230 mm in 50 mm layers; casing surface held at no more than 60 °C |
| Liner | 409 stainless steel, 2 mm stack liner / 3 mm elsewhere; overlap-with-the-flow |
| Transition to silencer | Square-to-round gradient transition section; flange welded on site |
| Instrumentation | Casing designed with a CEMS port |
| Access | Platform levels with calculated lighting for night inspection and overhaul |
| Site joints | Liner and insulation at section joints installed on site after welding |
| Switching duty | Three-way path: GT exhaust to atmosphere or into the HRSG; combined cycle by day, simple cycle at night |
| Turbine coverage | T130, FT8, 5B, 6B, 6FA, 9E, 7FA, V94.2, SGT5-4000F, SGT5-5000F, 9F, 9HA, SGT5-8000H, M701J |
| Track record | 126 sets of gas turbine bypass systems, 48 of them for 9F and above |
Three Reasons Plants Buy a Bypass Stack
Self-Supporting vs Guyed vs Frame-Supported Stacks
| Structure | How it stands | What it means on site |
|---|---|---|
| Self-supporting | The casing itself carries wind, seismic and thermal loads through its own shell and base. | No guy wires to tension or replace, smallest footprint, fastest erection. This is the configuration Hangguo supplies. |
| Guyed | A slender shell held by tensioned cables anchored to the ground. | Lower steel weight but a large footprint and a permanent cable maintenance and inspection programme. |
| Frame-supported | A steel tower or frame carries the stack shell. | Used where height or local codes rule out a free-standing shell; more steel, more joints, longer erection. |
Bypass system components staged for shipment — sections travel as complete welded units.
How We Build and Ship It
- Roll-forming and automatic welding of casing sections in workshop, with CNC cutting and 8 m lathe capacity for large diameters.
- Sections welded together at the factory; liner and insulation at the site joints are installed after the field weld, so the insulation is never crushed by transport.
- Square-to-round transition to the silencer is flange-welded on site, keeping the gas path aligned.
- Heavy sections move out through our 1,000 t canal-side wharf, then by road or sea to the site.
- Every stack is assembled and checked before release; a complete technical and after-sales service team backs the installation.
Related equipment built in the same plant: gas silencers, exhaust stacks and flue gas dampers.
Bypass Stack Projects & Qualifications
Recent bypass system shipments
- Samalaju, Malaysia — complete bypass system (damper, silencer, steel structure and stack) factory-tested before shipment for Sarawak Energy Berhad.
- Iraq Euphrates — 10 sets of 9E single-to-combined-cycle bypass systems with Shanghai Electric across four sites.
- Uzbekistan Syrdarya II — 700 t of equipment delivered with Harbin Electric; GT2 first fire achieved March 2026.
- Bahrain Aluminium — 680.8 MW winter / 592.4 MW summer combined cycle; bypass system took its TOC one month early and won MEED's 2025 Bahrain Power Project of the Year.
Qualifications behind the stack
- EN 13084 certified fabrication for steel chimneys; EN 1090 and EN 3834 for steel structures and welding.
- ISO 9001 / 14001 / OHSAS 18001 quality, environment and safety management systems.
- Drafting unit of China's flue gas damper industry standard; patented damper and stack structures.
- Parent company XIZI Clean Energy, stock code 002534 — audited financial backing for long-cycle projects.
Full profile: About Hangguo. Project figures follow site news releases — confirm before publication

Frequently Asked Questions
| What does self-supporting mean for my site? | The stack casing carries wind, seismic and thermal loads on its own shell and base — no guy wires, no external tower. You save the footprint and the permanent cable tensioning and inspection programme that a guyed stack requires. |
| How hot does the outside of the stack get? | The internal insulation is designed to keep the casing surface at no more than 60 °C, which protects personnel on the platforms and reduces heat loss. |
| How thick is the insulation and what material is used? | Typically 180 mm to 230 mm, laid in 50 mm layers, with ceramic fibre as the standard material. Final thickness is calculated by our designers against your gas temperature and specified in the project general arrangement. |
| What liner material and thickness do you use? | 409 stainless steel liner panels — 2 mm on the stack liner and 3 mm elsewhere. Panels lap overlap-with-the-flow so turbulent gas cannot lift the edges, and are double tack-welded at 180° between nuts and bolts. |
| How does the stack connect to the silencer? | A square-to-round gradient transition section sits between stack and silencer; the flange is welded on site, so the gas path is aligned after erection rather than guessed in the workshop. |
| Is a CEMS port included? | Yes. The casing is designed with a CEMS port so your emissions monitoring can be fitted without field cutting of the shell. |
| How much work happens on site? | Casing sections are welded in the workshop and travel as complete units. On site the section joints are welded, the liner and insulation at those joints are installed, and the transition flange is welded. That sequence keeps insulation undamaged by transport. |
| What sizes have you built? | Delivered projects include a gas path of ID 8,000 mm. Casing inner diameter, insulation thickness and height are all calculated and manufactured to owner requirements. |
| Can the stack be lit for night work? | Yes. The casing can be equipped with a lighting system, with the illumination of each platform level calculated and designed for the actual maintenance task. |
| What do you need to quote a bypass stack? | Gas turbine model and exhaust temperature, required stack height and diameter, site wind and seismic data, silencer and damper interface dimensions, and whether platforms, lighting and CEMS are in scope. A general arrangement drawing is enough to start. |
