Hangguo:Your Professional Vibration Grate Manufacturer!
Hangzhou Hangguo General Equipment Co., Ltd. has been established since December, 2000. As a subsidiary of XIZI Clean Energy Equipment Manufacturing Co,.tld.（Stock code：002534）the Company specializes in the design and manufacture of auxiliary engine and heavy duty equipment for boilers. The company has produced 115 sets of flue gas bypass systems and 152 sets of flue gas baffle doors, covering all continents in the world.
-
![Vibration Grate]()
Vibration GrateThe vibration grate has the function of automatic fire dispatching due to the vibration of the grate. The fuel particles roll up and down in vibration, which increases the contact of the air in theread more -
![High Quality Vibration Grate]()
High Quality Vibration GrateThe vibration grate has the function of automatic fire dispatching due to the vibration of the grate. The fuel particles roll up and down in vibration, which increases the contact of the air in theread more -
![OEM Vibration Grate]()
OEM Vibration GrateThe vibration grate has the function of automatic fire dispatching due to the vibration of the grate. The fuel particles roll up and down in vibration, which increases the contact of the air in theread more -
![Vibration Grate With Automatic Fire Dispatching]()
Vibration Grate With Automatic Fire DispatchingThe vibration grate has the function of automatic fire dispatching due to the vibration of the grate. The fuel particles roll up and down in vibration, which increases the contact of the air in theread more -
![Automatic Vibration Grate With Automatic Fire Dispatching]()
Automatic Vibration Grate With Automatic Fire DispatchingThe vibration grate has the function of automatic fire dispatching due to the vibration of the grate. The fuel particles roll up and down in vibration, which increases the contact of the air in theread more -
![Automatic Vibration Grate]()
Automatic Vibration GrateThe vibration grate has the function of automatic fire dispatching due to the vibration of the grate. The fuel particles roll up and down in vibration, which increases the contact of the air in theread more
Why Choose Us
Rich Experience
Hangguo has been developing, designing and manufacturing bypass systems for more than 20 years, the bypass systems of T130, FT8,5B, 6B, 6FA, 9E, 7FA, V94.2, SGT5-4000F, SGT5-5000F, 9F, 9HA, Sgt5-8000h and M701J have been successfully developed, designed and manufactured.
Our Products
Our products cover GE, Siemens, MHI,Ansaldobreda and other major gas engine suppliers of various main power generation, models, the company supplies 126 sets of gas engine bypass system, among them, 48 sets of 9F and above gas turbine bypass chimney supply performance.
High Quality
Our company has established a sound quality management system and passed the approval of ISO9000, ISO14000 and OHSAS18001 China quality certification center. The company has been awarded the title of "advanced enterprise of social responsibility" by hangzhou municipal people's government, and is the cultivation enterprise of hidden champion in yuhang district.
Advanced Equipment
Our company has advanced machining equipment, including CNC gantry cutting machine, horizontal 8-meter lathe, gantry planer, boring machine, hydraulic bending machine, automatic welding machine, CNC machining center and other advanced equipment, capable of processing various parts. In addition, it also has a large number of processing equipment such as lathe, milling, planing, grinding, boring, slotting machine, etc., which can meet the processing needs of various parts, as well as key equipment and facilities such as large shot blasting room and paint spraying room.
Efficient Combustion: Vibrating grates, especially when paired with water-cooling, allow for more complete and efficient burning of fuels, leading to higher combustion efficiency and reduced emissions.
Reduced Maintenance: The vibrating grate design often results in lower maintenance requirements compared to other stoker systems, reducing downtime and repair costs.
Flexibility in Fuel Handling: Vibrating grates can handle a wide variety of fuels, including those with high moisture content, ash, and slag-making capabilities.
High Availability and Continuous Operation: The design of vibrating grates, particularly water-cooled versions, allows for continuous operation and high plant availability, minimizing operational interruptions.
Low Emissions:Vibrating grate systems, especially when water-cooled, can achieve low flue gas emission rates (NOx, particles).
Compatibility with Existing Boilers: Vibrating grate systems can be easily retrofitted into existing power boilers, making them a cost-effective solution for upgrading or adapting existing systems.
Ease of Replacement: Grate bars in vibrating grates can be easily replaced, simplifying maintenance and reducing downtime.
Technical Parameters
|
Boiler evaporation |
Effective area of grate m2 |
Effective width of grate mm |
Outlet shaft length (to the grate centerline)mm |
Diameter of output shaft end mm |
Number of air chambers |
|
2 t/h |
3.04 |
1040 |
802 |
Φ60 |
3 |
|
4 t/h |
5.97 |
1332 |
1050 |
Φ80 |
5 |
|
6 t/h |
7.36 |
1560 |
1089 |
Φ80 |
5 |
|
8 t/h |
8.26 |
2000 |
1425 |
Φ80 |
4 |
|
10 t/h |
10.5 |
2000 |
1470 |
Φ95 |
6 |
|
15 t/h |
15.57 |
2664 |
1835 |
Φ100 |
5 |
|
20 t/h |
22.08 |
3434 |
2079 |
Φ120 |
6 |
|
30 t/h |
27.39 |
3804 |
2400 |
Φ130 |
6 |
|
40 t/h |
35.44 |
4544 |
2771 |
Φ130 |
7 |
Application of Vibration Grate
Power plants
The vibration grate boiler is widely used in large-scale power plants for steam generation and electricity production. It can efficiently burn coal, biomass, or mixed fuels to produce high-pressure steam that drives turbines, generating clean and sustainable electricity for the power grid.
Chemical industry
The chemical industry often needs high-temperature steam for various chemical reactions, distillation, or drying processes. The vibration grate boiler can provide precise steam parameters and stable steam supply, meeting the demanding requirements of chemical production.
Food processing
In food processing facilities, vibration grate boilers can use various biomass fuels to provide steam for cooking, sterilization, drying, and other processes. This sustains a sustainable approach to food production. Meanwhile, it is helpful in reducing the overall energy costs.
Textile
In the textile and garment industry, vibration grate boilers can also use biomass fuels to provide steam for dyeing, drying, and other processes. It helps to reduce the environmental impact of textile production and improve the sustainability of the whole supply chain.
Paper and pulp industry
In the paper and pulp industry, vibration grate boilers can use biomass fuels such as wood chips, sugarcane residue, and waste to provide steam for the pulping, papermaking, and drying processes. It helps reduce reliance on fossil fuels and lower greenhouse gas emissions, improving the environmental sustainability of the industry.
Other fields
In addition to the above applications, vibration grate boilers are also used in various other fields, such as central heating, district heating, waste-to-energy plants, and industrial production facilities. They can use a wide range of solid fuels and biomass resources as feedstocks to provide high-temperature steam and thermal energy for heating, production, and other purposes, thus contributing to energy conservation and environmental protection.
Components of Vibration Grate
Grate Surface
This is the main part that holds the fuel and ash. It is typically made of metal bars or panels that are subject to vibration.
Vibration Mechanism
This part is responsible for the intermittent shaking of the grate. It can be a simple motor-driven system or a more complex hydraulic or pneumatic system.
Cooling System
This can be a water-cooled or air-cooled system that circulates through the grate bars or panels to manage heat.
Fuel Feeding System
Methods for feeding fuel to the grate, such as screw feeders, air spouts, or water-cooled chutes.
Ash Discharge System
Mechanisms for removing the ash from the front of the grate, like ash conveyors or augers.
Air Distribution System
Primary and secondary air fans and dampers that control the flow of air into the combustion chamber.
Other components
Depending on the specific design, a vibration grate may also include things like refractory linings, concrete substrates, and various control systems.

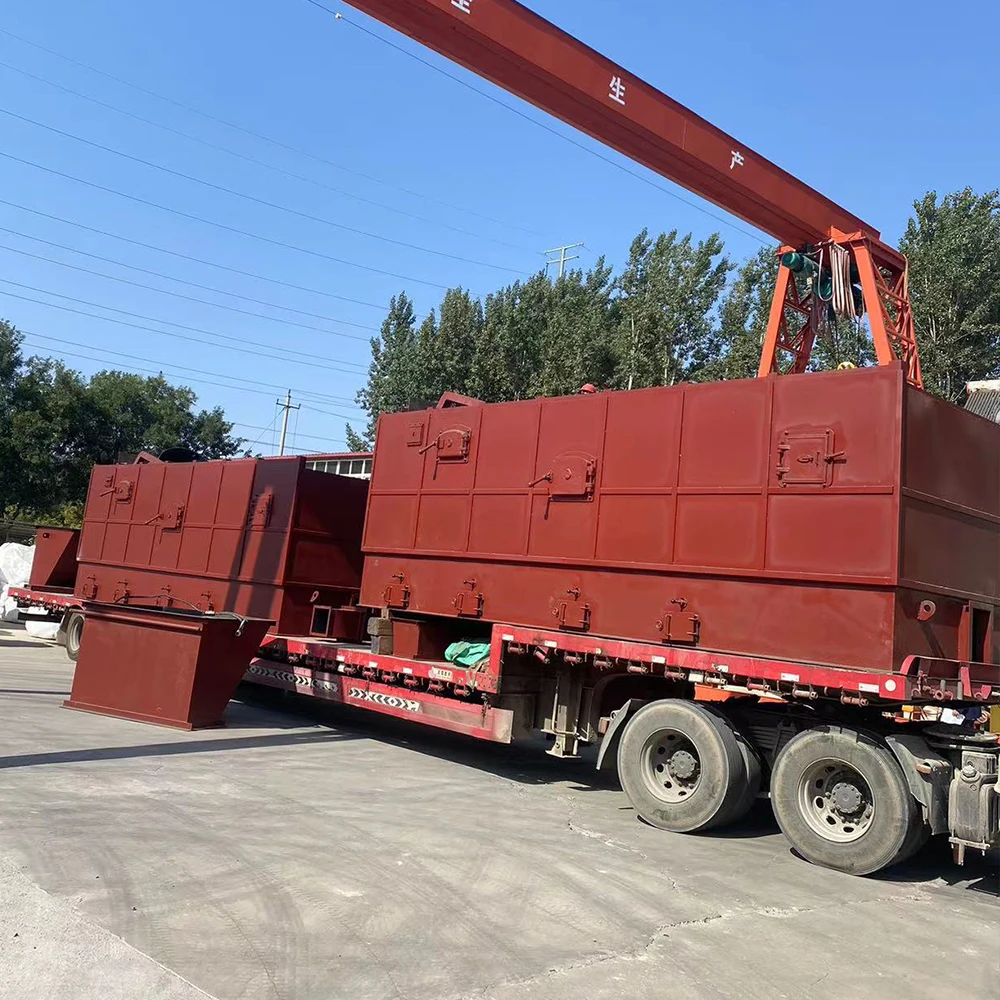

Packaging and Shipping
Our Certificates
FAQ
We're professional vibration grate manufacturers and suppliers in China for over 20 years, featured by good service and competitive price. We warmly welcome you to buy high quality vibration grate made in China here from our factory.
