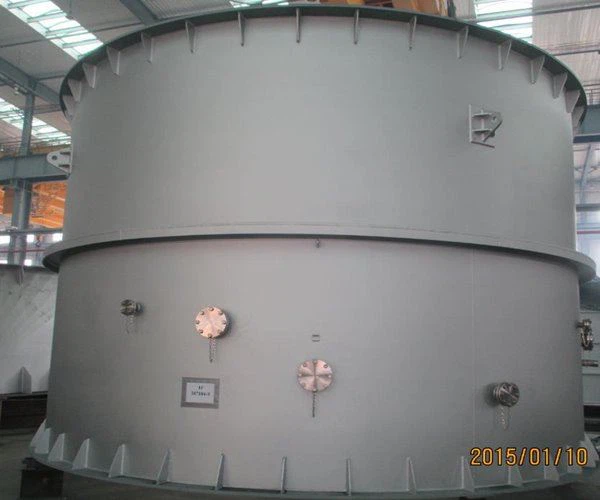

Smoke Stack Exhaust
The flue of the bypass system is divided Inlet duct, exit duct, chimney, etc
The Inlet duct can be divided into rectangular Inlet duct and circular Inlet duct according to customer needs.
The following is an inlet flue configuration for one of our projects
Inlet duct is installed between the Non-metallic expansion joint at the side of the GT and the diverter damper. There are two inlet duct for the bypass system this project.
For the inlet duct Ⅰ, its inlet dimension(gas path) is Φ6410mm, and its outlet dimension is 7000mm×7000mm. For the inlet duct Ⅱ, its inlet dimension is 7000mm×7000mm， and its outlet dimension is 7800mm×7800mm. Inlet duct adopt internal heat insulation structure, the liner material is stainless steel (thickness is 3mm ), the casing material is A36(thickness is 12 mm ).
The regulations on the height of the exhaust pipe in each atmospheric emission standard
1 Maximum allowable emission concentration: the limit value that the concentration of pollutants in the exhaust pipe after treatment cannot exceed any one hour;
2 The maximum allowable emission rate: the limit value that the mass of pollutants emitted in any hour in a certain height of the exhaust pipe does not exceed;
3 Unorganized emission: all smoke, productive dust and other harmful pollutants that do not leak through the chimney or exhaust system are regarded as unorganized emission;
The company specializes in the following projects:
(1) Chimney works: new slip form, anti-corrosion, maintenance, demolition, reinforcement, desulfurization, beautification, elevation, tilt correction, replacement of lining and inner wall of chimneys below 240 meters (brick, cement, concrete, steel structure) Ash cleaning, platform installation, lightning rod installation and other projects, new construction of chimneys in wheel kilns, construction and cleaning of water towers, granaries and silos, chimney heightening, etc.;
(2) Chimney maintenance works: new chimney construction, chimney renovation, chimney cleaning, chimney inspection, chimney flaw detection, chimney crack repair, chimney hoop reinforcement, chimney carbon fiber cloth reinforcement, chimney removal and heightening, chimney correction, chimney lining replacement, Chimney top repair, overhaul or replacement of lightning protection facilities, chimney painting, wheel kiln maintenance, replacement of lining, etc.;
(3) Installation works: high-altitude installation, chimney installation, lightning rod installation, beacon light installation, chimney installation and maintenance aviation obstruction lights, navigation light installation, chimney platform installation, chimney climbing ladder installation, stainless steel chimney installation, etc.;
(4) High-altitude beautification projects: high-altitude decoration, chimney navigation marks, chimney painting navigation marks, painting aviation signs, exterior wall cleaning, painting navigation mark color ring, exterior wall paint construction, painting chimney color ring, chimney painting, water tower painting and writing , Power plant hyperbolic concrete cooling tower painting, high-altitude beautification, chimney decoration, etc.
